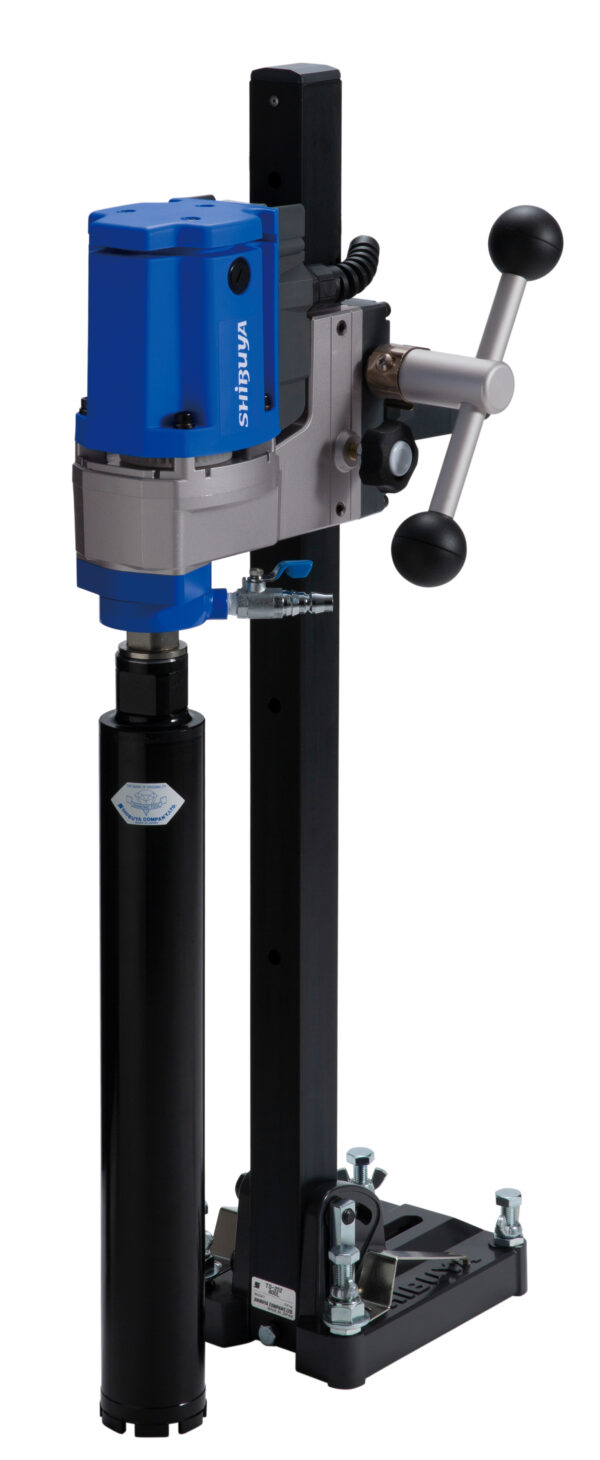

Core drilling machine SHIBUYA TS-095

Ask about this product:

  • This field is for validation purposes and should be left unchanged.

Description

High quality core drilling machine Shibuya TS095 for drilling in concrete, stone and tile.

✓ Practical and compact core drilling machine
✓ Lightweight steel/aluminum hybrid column
✓ Weight only 9,6 kg
✓ Strong but still silent motor
✓ Two models: TS095 H1012 and TS095 H1011.

Additional information

Overall height

805 mm

Base Size

146 x 200 mm

Total Stroke

558 mm

Motor / power

1,6 kW, 240 V, 1-phase, 50-60 Hz

Rated Current

5 A

Spindle Rev. at No-Load (min-¹)

1100 (H1011) / 2000 (H1012)

Max. Applicable Diameter

120 mm (H1011) / 100 mm (H1012)

Spindle thread

R½"

Angle

0-45 °

Weight

9,6 kg
